Product Series

MagicPRISM Series
The MagicPRISM is OPOTEK’s original stand-alone OPO module that is compatible with a wide variety of nanosecond Nd: YAG pump lasers.

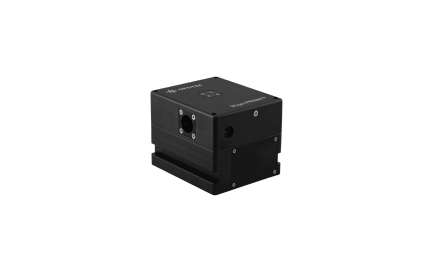

 MagicPRISM OPO

The MagicPRISM OPO is a compact, standalone OPO that is compatible with a wide variety of nanosecond Nd: YAG pump lasers.
Tuning Range
410 – 680 nm
690 – 950 nm
Peak OPO Energy
50 mJ @ 750 nm
View details

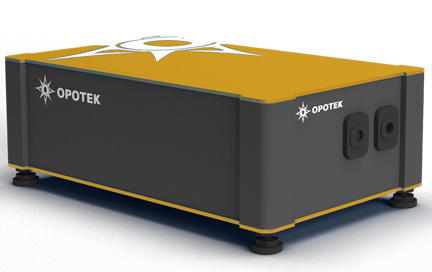

Opolette Series
The Opolette Tunable Laser Series features the smallest tunable laser system in the world. Their rugged design allows these systems to ship installation free.

OPOLETTE 2731 / 3034

Ultra compact, light-weight Mid-Infrared (MIR) tunable laser system.
Tuning Range
2700 – 3100 nm
3000 – 3450 nm
Peak OPO Energy
6 mJ @ 2940 nm
View details

OPOLETTE 2940

Ultra compact, 2940 nm, fixed wavelength laser system for optimal water absorption.
Tuning Range
2940 nm (fixed)
Peak OPO Energy
6 mJ @ 2940 nm
View details

OPOLETTE 355 LD

Ultra compact, light-weight integrated Ultra Violet (UV)/Visible (VIS)/Near-Infrared (NIR) tunable laser system. Access to the entire tuning range without changing configurations.
Tuning Range
410 – 2200 nm
Peak OPO Energy
9.4 mJ @ 450 nm
View details

OPOLETTE 532 LD

Ultra compact, light-weight integrated Near-Infrared (NIR) tunable laser system.
Tuning Range
680 – 2400 nm
Peak OPO Energy
13 mJ @ 750 nm
View details

OPOLETTE DUV

Ultra compact, light-weight, Deep Ultra Violet (DUV) tunable laser system. Designed for applications that use Argon Fluoride (ArF) Excimer Laser (193 nm) but require tunability up to 210 nm.
Tuning Range
193 – 210 nm
Peak OPO Energy
0.85 mJ @ 208 nm
View details

Phocus Series
The Phocus series includes tunable laser systems specifically designed for photoacoustic applications.

Phocus BENCHTOP

The Phocus BENCHTOP is ideal for the scientific laboratory where it shines as a multi-use instrument as a Photoacoustic Imaging light source. The pump laser, electronics, and optics are fully integrated onto the same optical bench.
Tuning Range
690 – 950 nm
1200-2600 nm
Peak OPO Energy
140 mJ @ 750 nm (before fiber)
View details

Phocus CORE

The Phocus CORE is designed to be easily serviced and ultra-compact while providing high energy tunable output. This is ideal for end users looking to integrate a standard system into an OEM design. The Second Harmonic Generator (SHG), OPO, and optional motorized variable attenuator (MVA) are integrated into the same hermetically sealed module that can be removed and installed by the end user.
Tuning Range
690 – 950 nm
1200-2600 nm
Peak OPO Energy
140 mJ @ 750 nm (before fiber)
View details

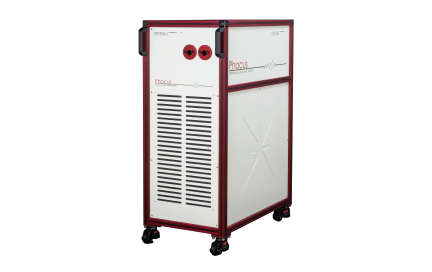

Phocus ESSENTIAL

The Phocus ESSENTIAL tunable laser system is designed to be a compact version of the Phocus MOBILE by stripping out everything but the ESSENTIAL tools required for Photoacoustic Imaging. Standard features include separate interlocked, fiber bundle, output ports for the SIGNAL (690 – 950 nm) and IDLER (1200 – 2600 nm) tuning ranges, real-time energy monitoring (EM), and Harmonic Auto Optimization. OPOTEK’s patented Fast tuning OPO (FT) mechanism is also available.
Tuning Range
690 – 950 nm
1200-2600 nm
Peak OPO Energy
140 mJ @ 750 nm (before fiber)
View details

Phocus MINI

The Phocus MINI is OPOTEK’s smallest, an integrated tunable laser system for Photoacoustic Imaging. The ultra-compact Phocus MINI is ideal for the Photoacoustic Imaging application that requires a light-weight solution for OEM designs.
Tuning Range
690 – 950 nm
Peak OPO Energy
15 mJ @ 750 nm
View details

Phocus MOBILE

The Phocus MOBILE is a full-featured, vibration isolated, fully integrated tunable laser system. The heavy duty shock absorbing casters and fully integrated single cabinet design make the Phocus MOBILE ideal for re-positioning the system in a clinical/hospital environment. The system is light sealed and delivers wavelength tunable output via interlocked fiber bundles.
Tuning Range
690 – 950 nm
1200-2600 nm
Peak OPO Energy
140 mJ @ 750 nm (before fiber)
View details

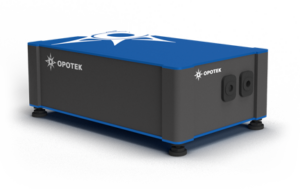

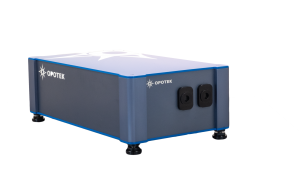

Radiant Series
The RADIANT tunable laser series utilizes optical parametric oscillator technology to generate wavelengths over a broad range in the UV, VIS and IR.

RADIANT 2731 / 3034

Fully Integrated MIR Tunable Laser System
Tuning Range
2700 – 3100 nm
3000 – 3450 nm
Peak OPO Energy
16 mJ @ 2940 nm
View details

Radiant 355 LD

The RADIANT tunable laser series utilizes optical parametric oscillator technology to generate wavelengths over a broad range in the UV, VIS and IR.
Tuning Range
410 – 2500 nm
Peak OPO Energy
70 mJ @ 450 nm
View details

RADIANT 532 LD

Fully Integrated NIR Tunable Laser System.
Tuning Range
680 – 2600 nm
Peak OPO Energy
120 mJ @ 750 nm
View details
