Products by Wavelength

DUV

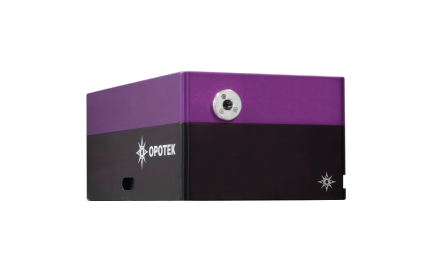

Opolette DUV

Features: Hermetically sealed, light-weight, a compact tunable laser system
Tuning Range: 193 – 210 nm
Peak Energy: 0.8 mJ @ 208 nm
Repetition Rate: 20 Hz
Pulse Width: 5 – 7 ns
Beam Diameter: 5 mm
Divergence: 2 mrad
Linewidth: 4 – 7 cm-1

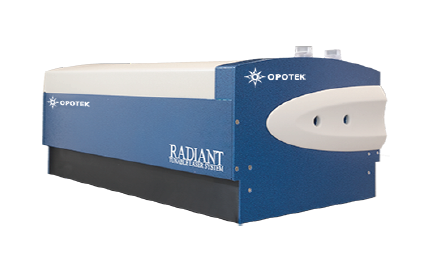

Radiant 355 LD

(Extended Ultraviolet Option)
Features: Full featured, modular, tunable laser system

Tuning Range: 193 – 2500 nm
Peak Energy: 1.6 mJ @ 208 nm
Repetition Rate: 10 Hz
Pulse Width: 5 – 7 ns
Beam Diameter: 9 mm
Divergence: 2 mrad
Linewidth: 4 – 7 cm-1

UV

Radiant 355 LD

(Ultraviolet Option)
Features: Full featured, modular, tunable laser system

Tuning Range: 210 – 2500 nm
Peak Energy: 11.5 mJ @ 320 nm
Repetition Rate: 10 Hz
Pulse Width: 5 – 7 ns
Beam Diameter: 9 mm
Divergence: 2 mrad
Linewidth: 4 – 7 cm-1

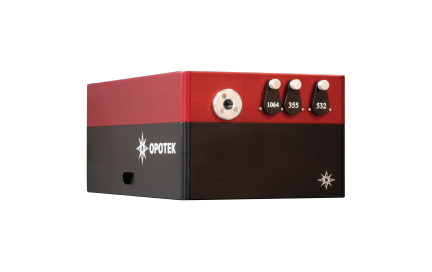

Opolette 355 LD

(Ultraviolet Option)
Features: Hermetically sealed, light-weight, compact tunable laser system installation free

Tuning Range: 210 – 2200 nm
Peak Energy: 2.2 mJ @ 320 nm
Repetition Rate: 20 Hz
Pulse Width: 5 – 7 ns
Beam Diameter: 5 mm
Divergence: 2 mrad
Linewidth: 4 – 7 cm-1

VIS

MagicPRISM OPO

Features: Stand-alone OPO module, compatible with most nanosecond Nd:YAG pump lasers
Tuning Range: 410 – 680 nm
Peak Energy: 30 mJ @ 450 nm with pump energy of 100 mJ @ 355 nm
Repetition Rate: n/a
Pulse Width: n/a
Beam Diameter: 6 mm
Divergence: 10 mrad

Radiant 355 LD

Features: Full featured, modular, tunable laser system
Tuning Range: 410 – 2500 nm
Peak Energy: 70 mJ @ 450 nm
Repetition Rate: 10 Hz
Pulse Width: 5 – 7 ns
Beam Diameter: 9 mm
Divergence: 2 mrad
Linewidth: 4 – 7 cm-1

Opolette 355 LD

Features: Hermetically sealed, light-weight, compact tunable laser system installation free
Tuning Range: 410 – 2200 nm
Peak Energy: 9 mJ @ 450 nm
Repetition Rate: 20 Hz
Pulse Width: 5 – 7 ns
Beam Diameter: 5 mm
Divergence: 2 mrad
Linewidth: 4 – 7 cm-1

NIR

MagicPRISM OPO

Features: Stand-alone OPO module, compatible with most nanosecond Nd:YAG pump lasers
Tuning Range: 690 – 950 nm
Peak Energy: 50 mJ @ 750 nm with pump energy of 140 mJ @ 532 nm
Repetition Rate: n/a
Pulse Width: n/a
Beam Diameter: 6 mm
Divergence: 10 mrad

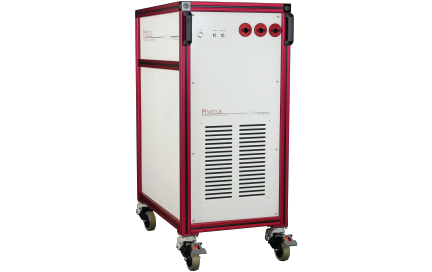

Phocus MOBILE

Features: Vibration isolated, fully integrated, light sealed transportable cart with shock-absorbing castersFiber bundle output
Tuning Range: 690 – 950 nm
Peak Energy: 140 mJ @ 750 nm
Repetition Rate: 10 Hz
Pulse Width: 5 – 7 ns
Beam Diameter: 9 mm
Divergence: 10 mrad
Linewidth: 4 – 7 cm-1

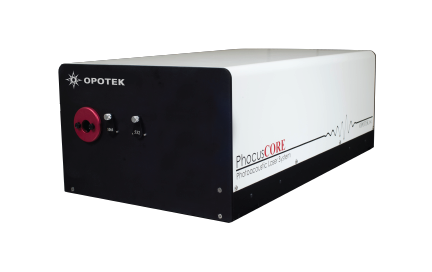

Phocus CORE

Features: Hermetically sealed harmonic/OPO module for convenient serviceFiber bundle output
Tuning Range: 690 – 950 nm
Peak Energy: 140 mJ @ 750 nm
Repetition Rate: 10 Hz
Pulse Width: 5 – 7 ns
Beam Diameter: 9 mm
Divergence: 10 mrad
Linewidth: 4 – 7 cm-1

Phocus BENCHTOP

Features: Full featured, modular, tunable laser systemFiber bundle output
Tuning Range: 690 – 950 nm
Peak Energy: 140 mJ @ 750 nm
Repetition Rate: 20 Hz
Pulse Width: 5 – 7 ns
Beam Diameter: 9 mm
Divergence: 10 mrad
Linewidth: 4 – 7 cm-1

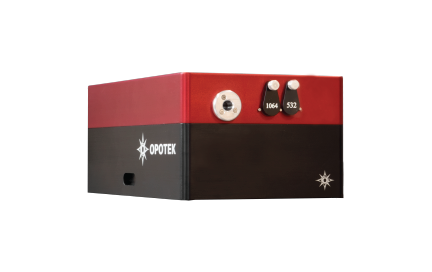

Phocus MINI

Features: Hermetically sealed, light-weight, compact tunable laser system installation free
Tuning Range: 690 – 950 nm
Peak Energy: 15 mJ @ 750 nm
Repetition Rate: 20 Hz
Pulse Width: 5 – 7 ns
Beam Diameter: 5 mm
Divergence: 10 mrad
Linewidth: 4 – 7 cm-1

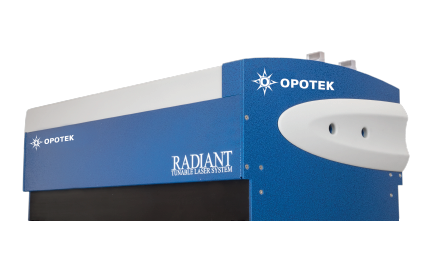

RADIANT 532 LD

Features: Full featured, modular, tunable laser system
Tuning Range: 680 – 2600 nm
Peak Energy: 120 mJ @ 750 nm
Repetition Rate: 10 Hz
Pulse Width: 5 – 7 ns
Beam Diameter: 9 mm
Divergence: 2 mrad
Linewidth: 4 – 7 cm-1

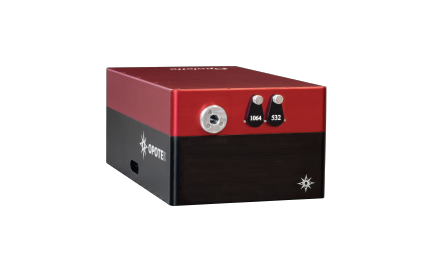

Opolette 532 LD

Features: Hermetically sealed, light-weight, compact tunable laser system installation free
Tuning Range: 680 – 2400 nm
Peak Energy: 8 mJ @ 750 nm
Repetition Rate: 20 Hz
Pulse Width: 5 – 7 ns
Beam Diameter: 4 mm
Divergence: 2 mrad

MIR

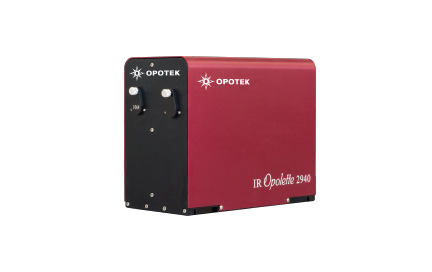

Opolette 2940

Features: Installation free light-weight, ultra-compact fixed wavelength laser system
Tuning Range: 2940 nm (fixed)
Peak Energy: 6 mJ @ 2940 nm
Repetition Rate: 20 Hz
Pulse Width: 5 – 7 ns
Beam Diameter: 5 mm
Divergence: 10 (H) x 2 (V) mrad
Linewidth: 4 – 7 cm-1

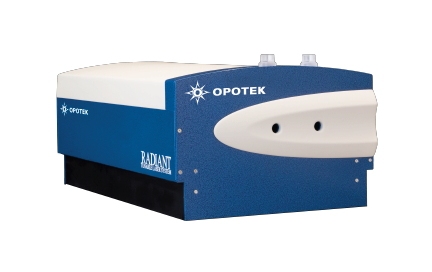

RADIANT 2731 / 3034

Features: Full featured, modular, tunable laser system
Tuning Range: 2700 – 3100 nm
Peak Energy: 18 mJ @ 2850 nm
Repetition Rate: 10 Hz
Pulse Width: 5 – 7 ns
Beam Diameter: 6 mm
Divergence: 10 (H) x 2 (V) mrad
Linewidth: 4 – 7 cm-1

Opolette 2731 / 3034

Features: Hermetically sealed, light-weight, compact tunable laser system installation free
Tuning Range: 2700 – 3100 nm
Peak Energy: 6 mJ @ 2940 nm
Repetition Rate: 20 Hz
Pulse Width: 5 – 7 ns
Beam Diameter: 5 mm
Divergence: 2 mrad
Linewidth: 4 – 7 cm-1
